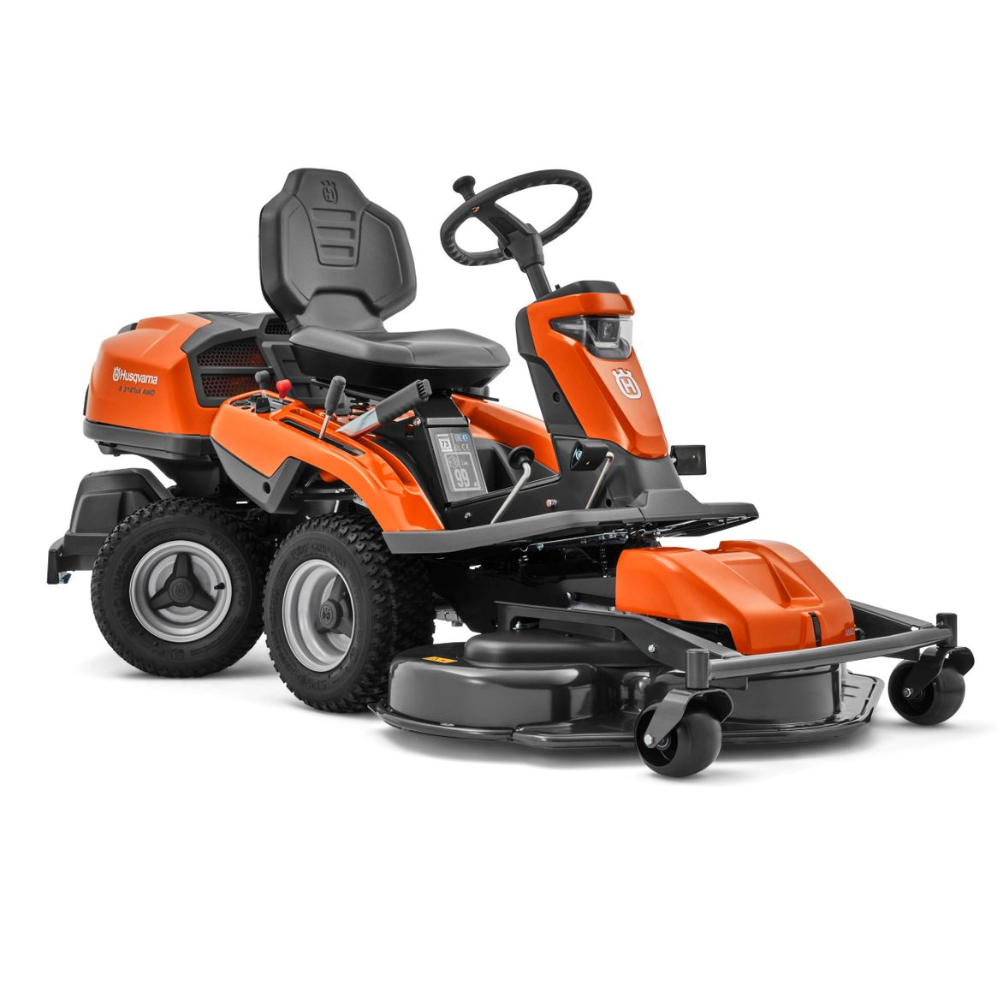

The Husqvarna R 316TsX AWD is a compact, hugely capable and flexible Rider with power steering, a powerful V-twin engine and a choice of cutting decks, BioClip (mulching) and rear ejection. Equipped with extra efficiency, an intuitive display, dual headlights and Bluetooth connectivity which allows you to easily monitor your rider with the Husqvarna Connect app. The R316TsX AWD can be fitted with 103 and 112cm Combi cutting decks.
The unique articulated steering system allows the rear pair of wheels to swing in underneath the machine. The result is superior manoeuvrability with a minimum turning radius at full lock.
The intuitive display communicates with the driver through visual symbols and warning sounds, assists in handling and gives real time data and warnings. For greater ergonomics and comfort a telescopic steering column lets the steering wheel height to be adjusted.
Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc
Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.
All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on situation and ground condition.
Free local delivery available within Sheffield and surrounding areas or collect from store. If you are located out of our catchment area, please contact us for an accurate delivery cost.
Power/fuel type Gasoline
Net power at preset rpm Energy 9.7 kW
Motor/engine manufacturer Kawasaki
Engine name FS481V
Cylinder displacement 603 cm³
Cylinders 2
Engine cooling Air
Engine lubrication type Full pressure
Oil filter Yes
Emission
Exhaust emissions (CO2 EU V)
851 g/kWh
Battery
Battery capacity 24 Ah
Battery type Lead-Acid
Battery pack weight 7 kg
Battery manufacturer Global
Cutting deck
Uncut circle 30 cm
Cutting width, min 94 cm
Cutting width, max 112 cm
Cutting height min 25 mm
Cutting height max 75 mm
Blade engagement Automatic
Dimensions
Tyre dimensions, front 170/60-8
Tyre dimensions, rear 170/60-8
Wheelbase 88.7 cm
Ground clearance 90 mm
Base machine, length 200.8 cm
Base machine, width 88.7 cm
Base machine, height 118.1 cm
Gross weight towed
125 kg
Weight (excl. cutting equipment) 251 kg
Drive system
PTO (Power Take Off) Belt-driven
Transmission type Hydrostatic
Drive method Dual pedal-operation
Speed forward max 9 km/h
Speed reverse max 5.9 mph
Speed reverse max 8 km/h
Equipment
Seat suspension Yes
Hour meter type Digital with pre-programmed service intervals
Seat material Vinyl
Seat back height High
Foldable seat Yes
Steering wheel type Comfort
Parking brake, type Disc
Vibration
Vibration level steering wheel 2.5 m/s²
Vibration level seat 0.7 m/s²
Sound and Noise
Sound pressure level at operators ear 84 dB(A)
Sound power level, guaranteed (LWA) 99 dB(A)
Sound power level, measured 98 dB(A)
