Full Description

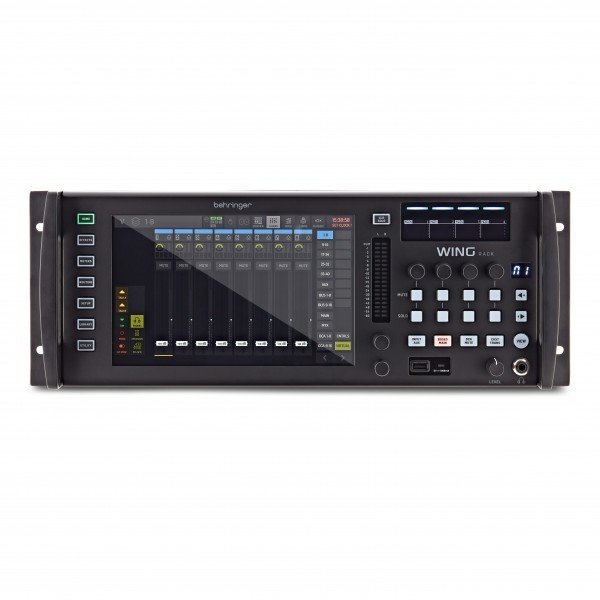

Intuitive touch screen control

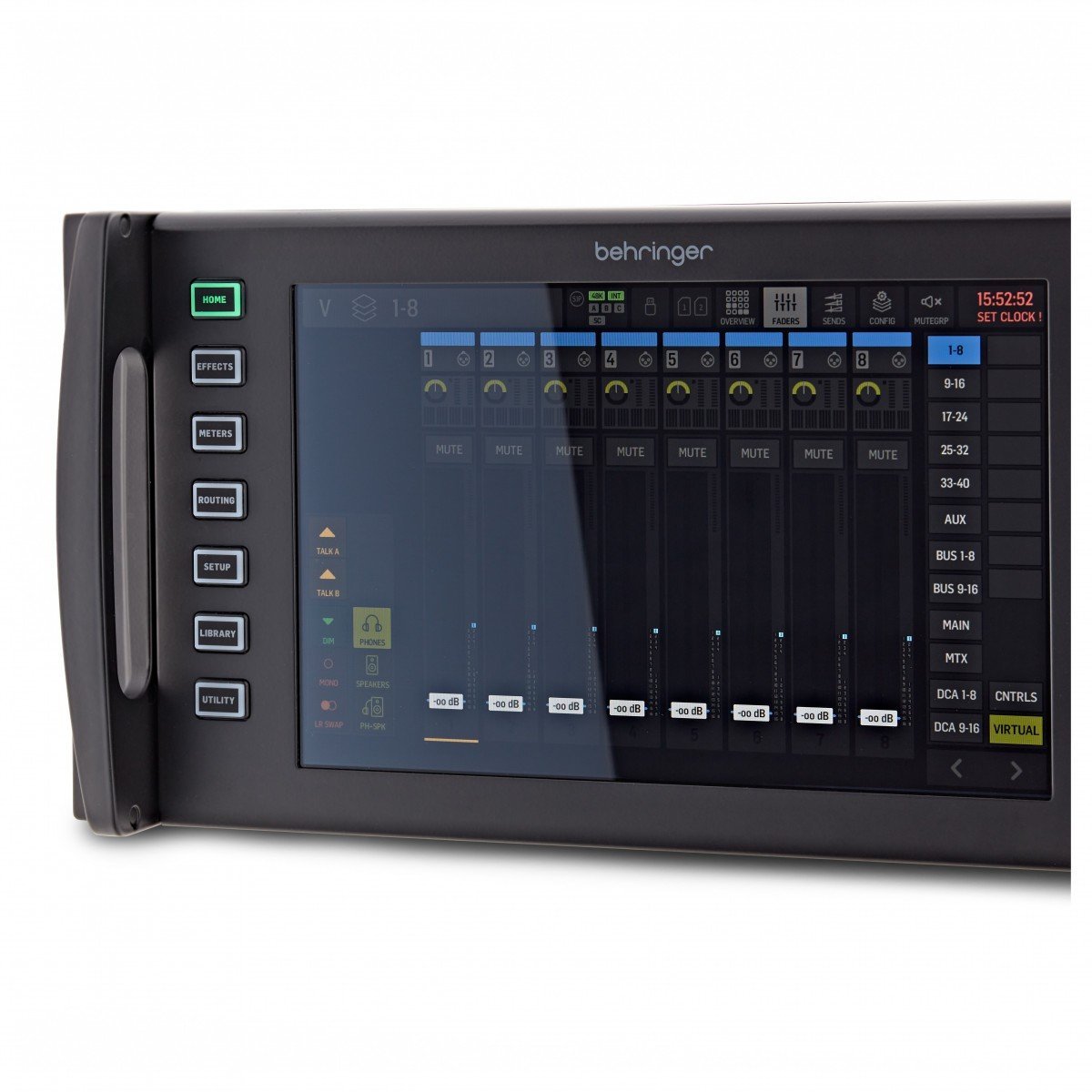

The WING RACK’s 10″ touch screen with the WING user interface provides a streamlined and efficient workflow. Easily navigate and control various parameters with a touch, making it perfect for both studio sessions and live performances.
Exceptional connectivity options
With three AES50 ports featuring Klark Teknik’s SuperMAC technology, the WING RACK supports up to 144 input and output signals with ultra-low jitter and latency. This “plug and play” connectivity is ideal for extensive production setups and ensures reliable performance.
High-quality FX processing
The WING RACK includes both premium and standard FX racks with 8 true-stereo processors each. From world-class reverb algorithms to vintage emulations, these effects enhance your mix, providing professional-grade sound quality and versatility.
Comprehensive output options
The WING RACK offers 4 additional stereo outputs with high-performance headphone amplifiers, ideal for in-ear monitoring applications. This feature ensures precise and clear audio for performers, enhancing live performance experiences.
Features
- 24 award-winning Midas PRO mic preamps and 8 Midas PRO outputs onboard

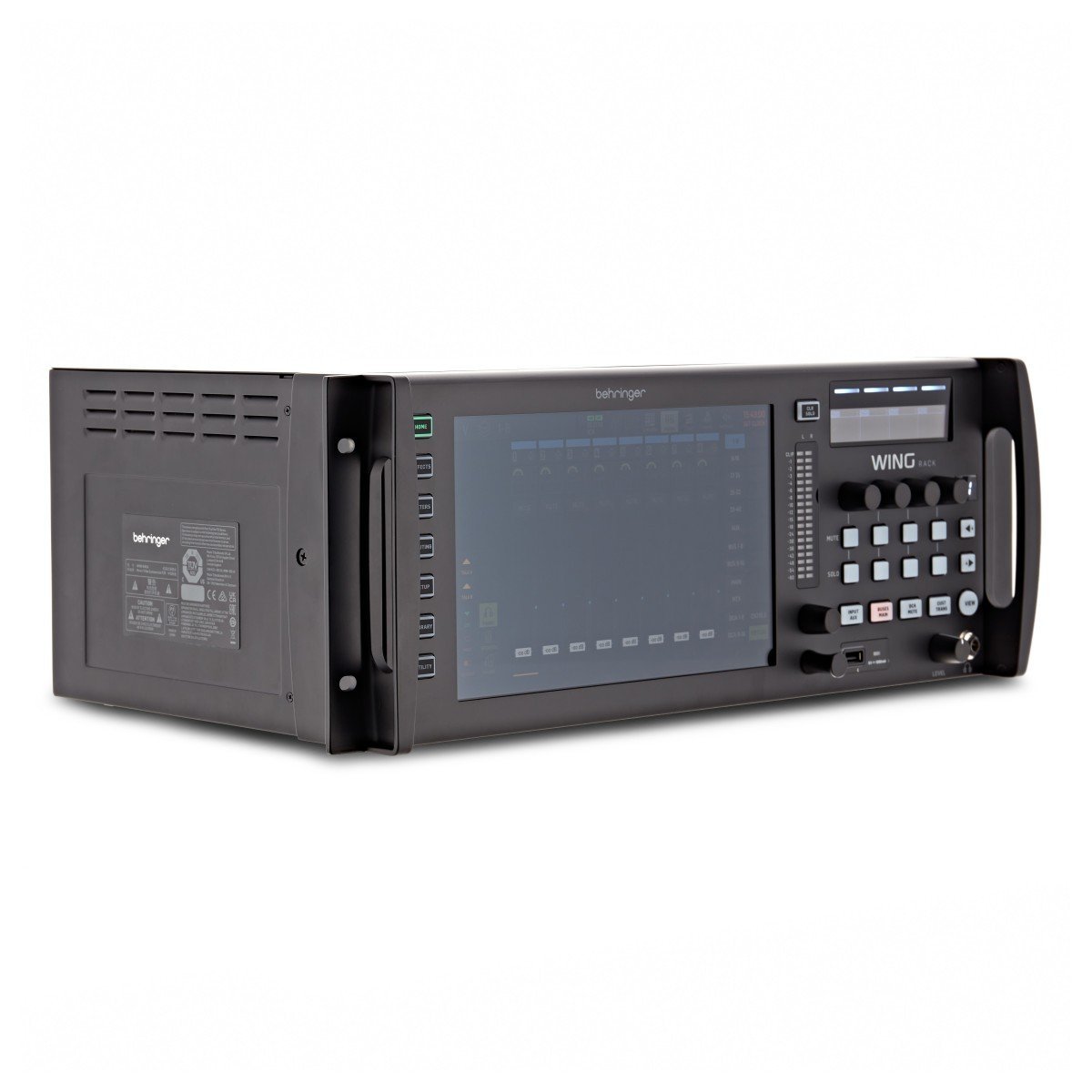

- Large main display on an adjustable front panel featuring the innovative touch optimized WING user interface and custom controls

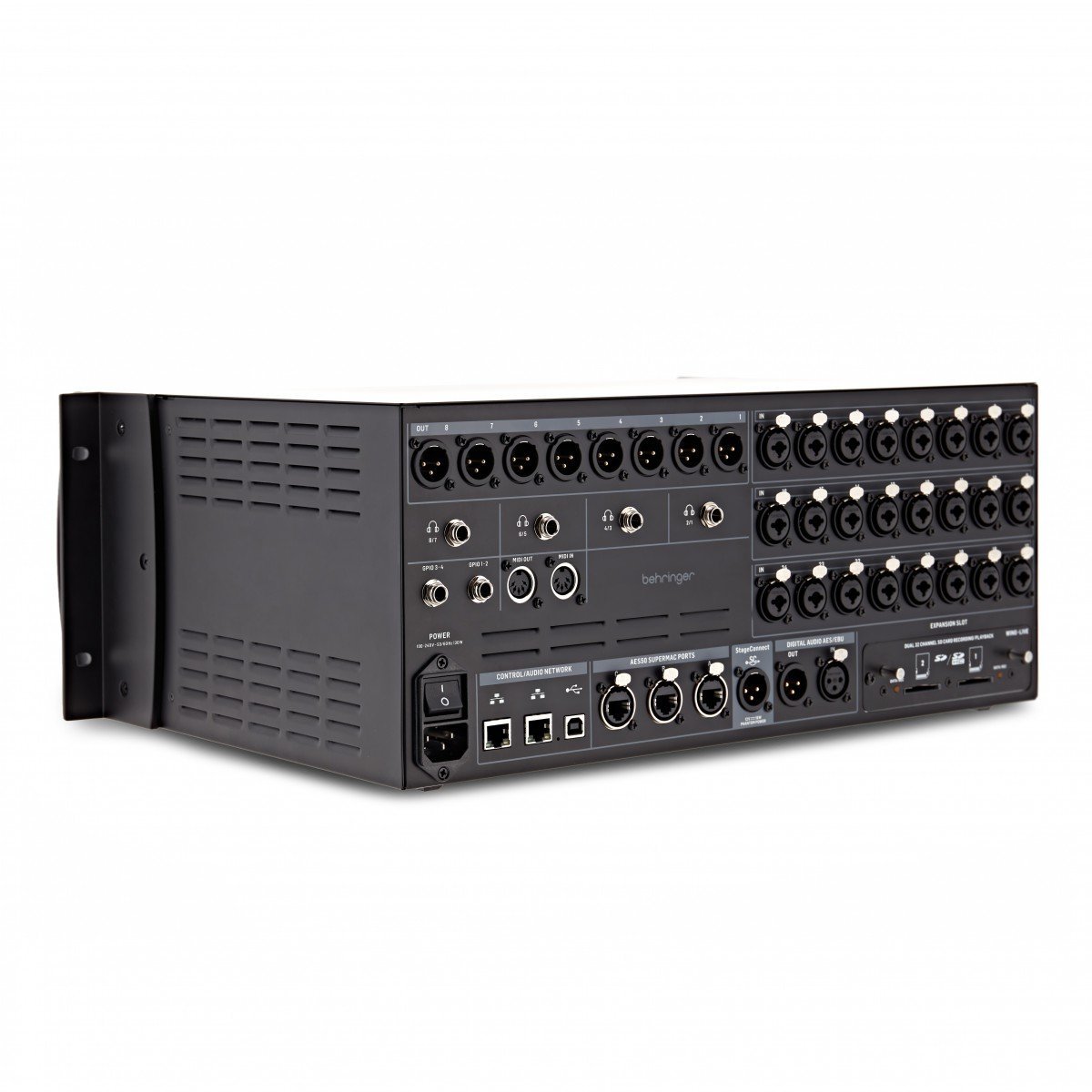

- Plug and play remote I/O connectivity for up to 144 input and output signals over 3 AES50 ports featuring Klark Teknik’s SuperMAC technology for ultra-low jitter and latency
- 4 additional stereo outputs with high-performance headphone amplifiers for IEM applications
- 48 x 48 channel USB 2.0 audio interface onboard with DAW remote control emulating HUI and Mackie Control
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Premium FX rack with 8 true-stereo processors and world-class TC M3000 algorithms, as well as Lexicon, Quantec, and EMT emulations
- Standard FX rack with 8 true stereo processors for a wide array of modulation EQ dynamics etc. also allows blending outboard effects to the mix
- 5 variable plug-in processing slots for all 40 stereo input channels featuring the most iconic vintage analog equalizers and compressors plus insert FX slot and 4-band parametric EQ for all 8 stereo aux channels
- 4 main 8 matrix and 16 aux stereo buses featuring dual inserts 8-band parametric EQ’s stereo imager and full dynamics processing
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP
- Built-in expansion port for optional audio interface cards or digital networking bridges MADI and ADAT/WC
- StageCONNECT 32-channel low-latency interface for personal monitoring or analog I/O boxes
- AES/EBU stereo digital inputs and outputs on balanced XLR
- TRS headphones connectors for headphone-based monitoring
- MIDI I/O and 2 GPIO ports for broader hardware connectivity
Specifications
- Product Code: WING RACK
Input/Output Characteristics:
- Frequency Response @ 48 kHz Sample Rate, 0 To -1 dB (Any Gain Setting): 10 Hz – 20 kHz
- Dynamic Range, Analog Into Analog Out (Typical), XLR / Aux: 111 dB / 108 dB
- A/D Dynamic Range, Preamplifier And Converter (Typical), XLR / Aux: 112 dB / 110 dB
- D/A Dynamic Range, Converter And Output (Typical), XLR / Aux: 118 dB / 112 dB
- Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
- Output Level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
- Output Impedance, XLR Connectors (Unbalanced / Balanced): 75 Ω / 75 Ω
- Input Impedance , TRS Connectors (Unbalanced / Balanced): 20 kΩ / 40 kΩ
- Non-Clip Maximum Input Level, TRS Connectors: +16 dBu
- Aux Output Level, TRS (Nominal / Maximum): +4 dBu / +16 dBu
- Aux Output Impedance, TRS (Unbalanced / Balanced): 150 Ω / 300 Ω
- Phones Output Impedance / Maximum Output Level: 500 mW @ 75 Ω / +18 dBu
- Residual Noise Level, XLR Out 1-16 Connectors, Unity Gain: -97 dBu
- Residual Noise Level, Aux And Monitor TRS Out Connectors: -95 dBu
Displays:
- Main Screen: 10.1″ TFT LCD, 1280 x 800 px, Capacitive Touch
- Main Screen Swivel, Continuous Adjustment: 15°- 60°

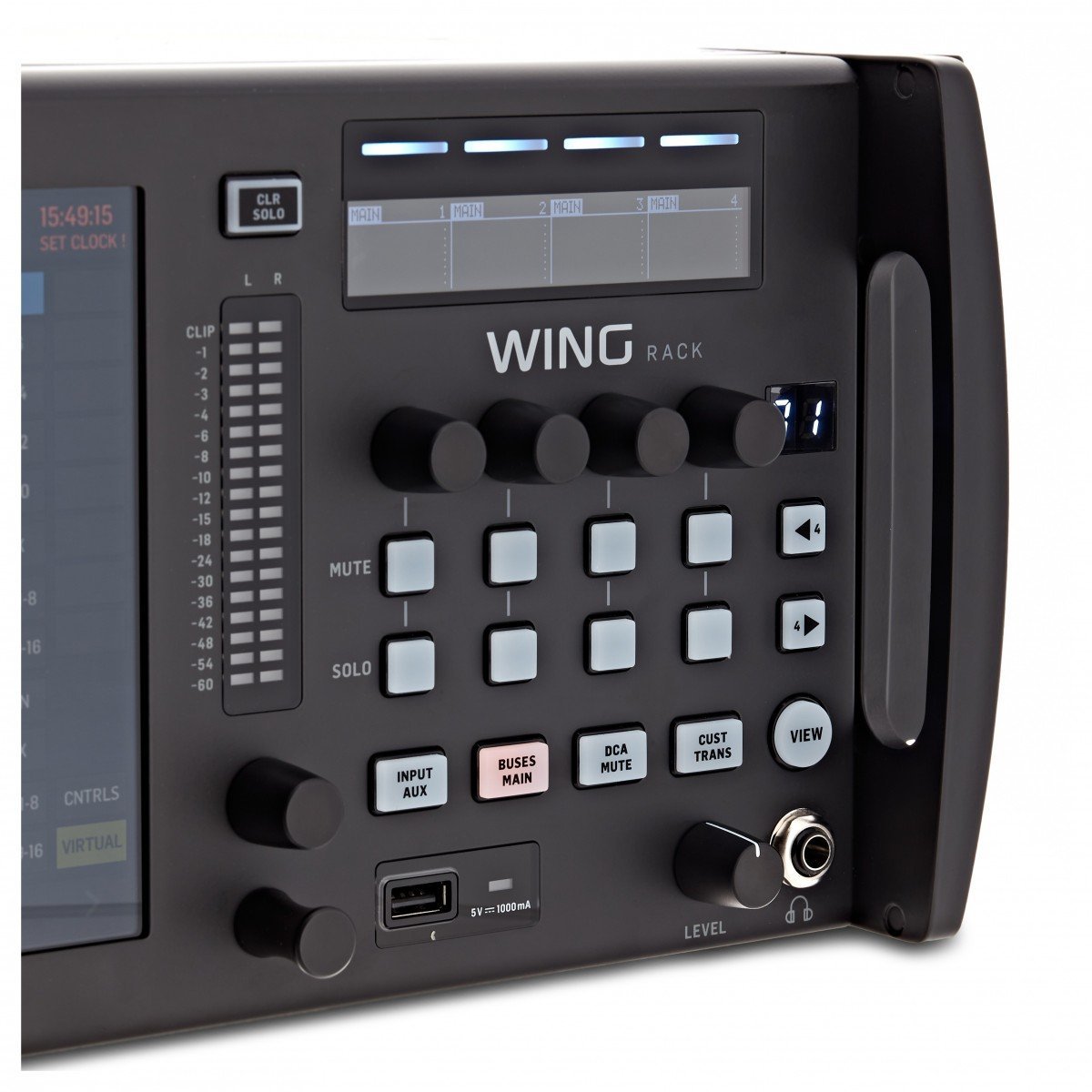

- 4-Channel Group LCD Screen With RGB Colour Strip Per Channel: 320 x 48 Monochrome
- Channel Editing Screen: 2.4″ TFT LCD, 320 x 240 px
- Main Stereo Meter: 18 Segment (-60 dB To Clip)
Power:
- Switch-Mode Power Supply: Auto-Ranging 100-240 Vac (50/60 Hz)
- Power Consumption: 130 W
Physical:
- Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
- Dimensions (H x W x D): 367 x 622 x 477 mm (14.4 x 24.5 x 18.8″)
- Weight: 12.87 kg (28.31 lbs)
Key Features
- 24 award-winning Midas PRO mic preamps deliver clean, full signal
- 10″ touch screen with WING UI for intuitive control and visual feedback
- 4 hi-performance headphone outputs for easy foldback
- Dual-SD card live recorder/player for capturing shows and playing backing tracks
- 48-channel USB audio interface
